How can I automate volume, pan, and effects?

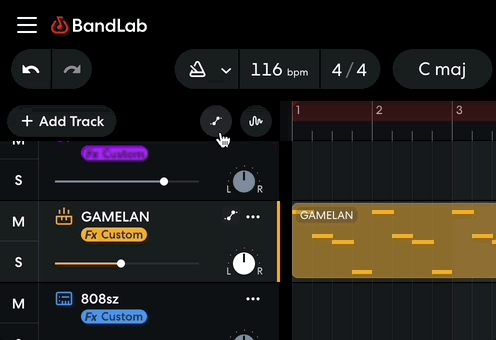

1. Click on  to toggle the automation lane

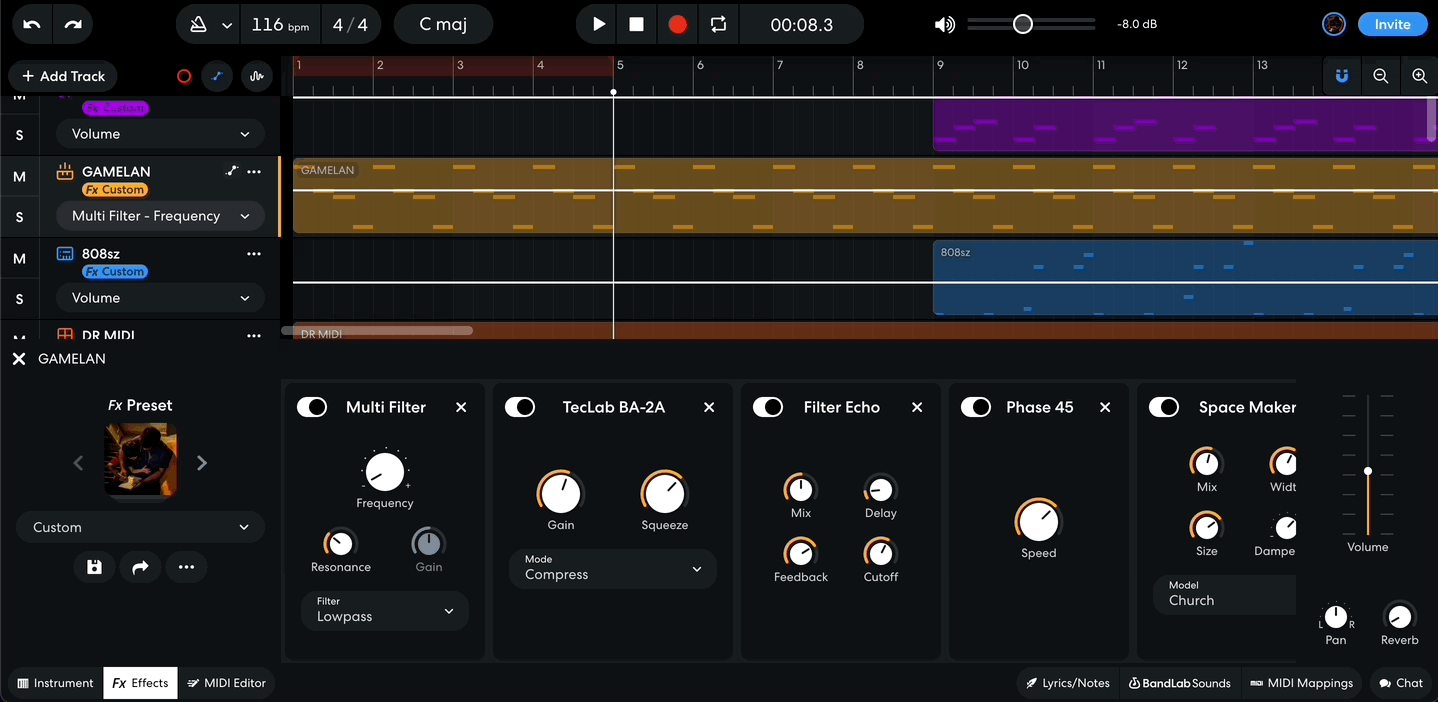

2. Click on the dropdown list to choose either to automate the track's Volume, Pan, or any effect parameter

3. Edit the automation by adding and moving breakpoints in the envelope



Automation Recording

With a MIDI controller, you can record automation instead of manually clicking and adding breakpoints to the envelope.

1. Using the MIDI Mapping feature, assign a knob or fader to the parameter you wish to automate
2. Click on to toggle the automation lane, then click on the Arm Automation Recording Icon:




3. Select if you'd like to automate your track's Volume, Pan, or any of your inserted effect's parameters to create an automation lane for the selected parameter

4. Click on  Record to start recording, and move the assigned knob or fader to record the automation
