Visual EQ

Visual EQ is a BandLab effect designed to help fine-tune and balance the frequency spectrum of your recordings and music tracks with precision. It provides real-time spectrum visualisation, enabling you to see the impact of your adjustments immediately.

Key Features

• Three Customizable Filter Nodes: Allows for filter type selection, gain adjustment, frequency range (20 Hz - 20 kHz), and width control
• Interactive Visual Section: Features filter curves that appear/disappear based on activity, single/double tap interactions to select/activate filters, and pinch gestures for width control
• Real-Time and Accurate Visualization: Displays the audio frequency spectrum with grid lines and labels for easy reference

Visual EQ Parameters

• Frequency: Adjusts which pitch you are selecting as a reference point for the filter
• Gain: Adjusts how much the volume increases or decreases
• Width (Q): Determines how broad or narrow the range of frequencies affected by your EQ adjustments will be. A narrow width targets a small range of frequencies, while a wide width affects a broader range

Types of Filters

• Low Pass: A low-pass filter allows lower frequencies to pass through while reducing or cutting higher frequencies
• High Pass: A high-pass filter allows higher frequencies to pass through while reducing or cutting lower frequencies
• Band Pass: A bandpass filter only allows a specific range of frequencies to pass through, cutting both the lower and higher frequencies outside that range
• Low Shelf: A lowshelf filter boosts or cuts all frequencies below a certain point (frequency) by the same amount
• High Shelf: A highshelf filter boosts or cuts all frequencies above a certain point by the same amount
• Peak: A peaking filter boosts or cuts frequencies around a central point, creating a peak or dip in the EQ curve
• Notch: A notch filter cuts a very narrow range of frequencies, almost completely removing them

How do I use the Visual EQ?

Web Mobile

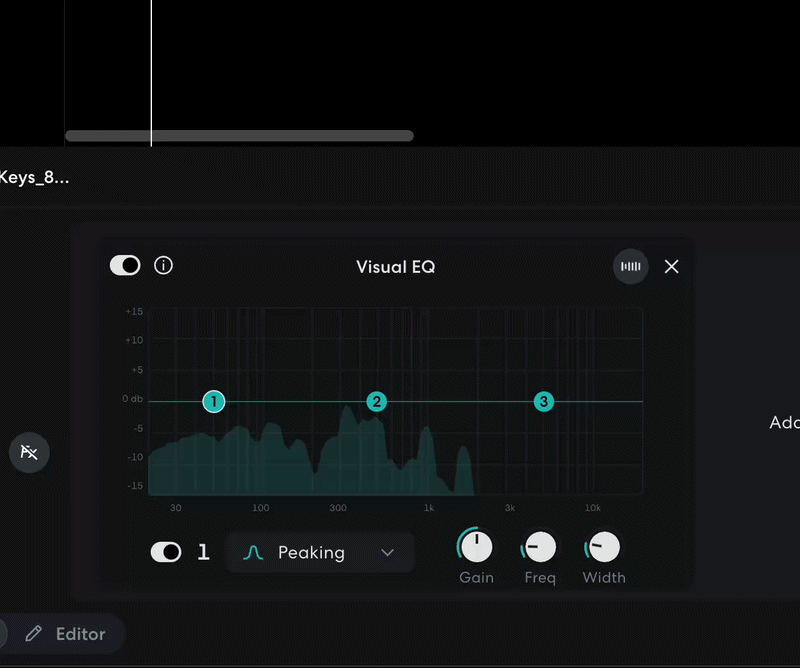

1. In the Studio, add a Visual EQ to your track
2. Click an EQ node to filter (1, 2, or 3)
3. Select the Filter Type from the dropdown
4. Move the node around to simultaneously adjust the Gain and Frequency. You can also adjust this from the knobs below. To revert to the default values, double-click on each knob
5. To disable a node, double-click on the node or click the node toggle

Show/Hide the visual spectrum analyzer from the waveform icon in the upper right of the Visual EQ

1. In the Studio, add a Visual EQ to your track
2. Tap an EQ node to filter (1, 2, or 3)
3. Select the Filter Type from the dropdown
4. Move the node around to simultaneously adjust the Gain and Frequency. You can also adjust this from the sliders below. To revert to the default values, double-tap on each slider

5. To disable a node, double-tap on the node or tap the node toggle



Show/Hide the visual spectrum analyzer from the 3-dot button in the upper right of the Visual EQ
